Ladder-like system with equally-spaced wood blades and manageable panel sizes. Customizable blades, layouts, and attachment methods with easy access to the plenum.
Panelized ladder-like system with equally-spaced wood blades, standard panel sizes, and a tegular edge. Designed for retrofit or new construction with simple lift-and-shift access to the plenum.
| PANEL [PG C-T-H X] | |
| M (MODULE WIDTH)1 | 12", 24" |
| C (BLADES/FOOT)3 | 2 - 10 |
| L (LENGTH)2 | 2' - 10' |
| BLADES [PG C-T-H X] | |
| T (THICKNESS)3 | 3/4" - 2" |
| H (HEIGHT)3 | 3/4" - 5-1/4" |
| TYPES [PG C-T-H X] | |
| DOWELED | D |
| WOODBACKED | W |
| FLEXIBLE | X |
| SLANTED | S |
| BULLNOSED | B |
| FABRIC-BACKED | F |
1Module - Width varies by profile due to spacing
2Length - 1”/0.5” shy of even foot for solid/veneer panels
3Thickness/Height - Consult standard size table

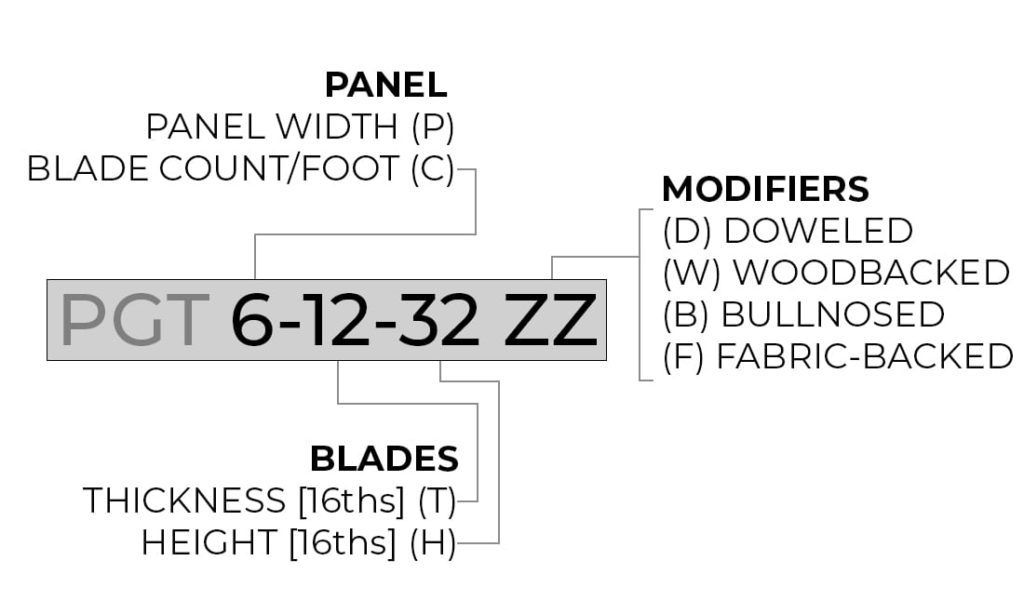

| PANEL [PGT C-T-H X] | |
| M (MODULE WIDTH) | 24" |
| C (BLADES/FOOT)3 | 4 - 9 |
| L (LENGTH)2 | 2',4',6' |
| BLADES [PGT C-T-H X] | |
| T (THICKNESS)3 | 3/4",1-5/16" |
| H (HEIGHT)3 | 3/4" - 2-1/4" |
| TYPES [PGT C-T-H X] | |
| DOWELED1 | D |
| WOODBACKED1 | W |
| BULLNOSED | B |
| FABRIC-BACKED | F |
1Assembly - Dowels are optional; woodbackers are not
2Length - 1” or 5/8” shy of even foot for 15/16” or 9/16” grid
3Thickness/Height - Consult standard size table
In the heart of Truxton Circle, Washinton D.C. – a hidden treasure – Dunbar High School sits proudly. Continuously raising the bar for education, Dunbar is 99% minority and consistently graduates influential alumni entrusted to make a difference in the modern world. Looking to the future, Dunbar High School updated its campus and added a new 600 seat, 10,000 square foot auditorium – inspired by its 1917 predecessor. The challenge to bring warmth and intimacy, culminating with the seriousness of its setting; the architecture of the auditorium includes no right angles – reminding students to think outside of the compulsory box.
| Module Width | Module Length | Accessibility | Attachment | Acoustics | Fire Performance | Seismic | Sustainability | Material | |
|---|---|---|---|---|---|---|---|---|---|
| Panel Grille | 1' - 3' | 2' - 10' (1' increments) | Full | Dowel Clip1, Woodbacker Clip2, Direct Attach3, Z-Clip4 | Transparent6 | Class A | Direct Attach3 | Various7 | Solid, Veneer |
| InTegrille | 2' | 2', 4', or 6' | Full | Dowel Clip1, Woodbacker Clip2, Lay-In or Tegular5 | Transparent6 | Class A | Lay-In or Tegular5 | Various7 | Solid, Veneer |
[S]=Seismically Compliant
1Dowel Clip – Spring clips that wrap around the dowel and attach to 15/16″ heavy duty grid. The clips are made of spring-steel with phosphate pre-treatment and corrosion-resistant coating.
2Woodbacker Clip – Spring clips that wrap around the woodbacker and attach to 15/16″ grid. The clips are made of spring-steel with phosphate pre-treatment and corrosion-resistant coating.
3Direct Attach [S] – Direct attachment of system to suspension system via mechanical fasteners (typically screws).
4Z-Clip – A two-part aluminum French Cleat system in which the receiving clip is attached to wall structure and the hanging clip is attached to the coresponding location on the system. Lift to disengage.
5Lay-In or Tegular [S] – Integrille can be manufactured with woodbackers that allow the panel to be installed as a Lay-In or Tegular system. Seismic compliance requires a hold-down clip.
6Transparent – System has no sound-absorbing material, which allows sound to pass through open area and result in a system that is ‘transparent’ to sound.
7Sustainability – Depending on the format (solid/veneer), the following sustainability standards/requirements can be met by Linear: Solid – HPD v1.2, FSC Mixed Credit; Veneer – HPD v1.2, FSC Mixed Credit, Indoor Advantage Gold, Recycled Content, NAF/ULEF.
