Grilles

An innovative but timeless wood panel system manufactured with perfectly aligned and spaced wood strips and endless customization options.

Grille PRODUCTS

Panel Grille

Ladder-like system with equally-spaced wood blades and manageable panel sizes. Customizable blades, layouts, and attachment methods with easy access to the plenum.

InTEGrille

Panelized ladder-like system with equally-spaced wood blades, standard panel sizes, and a tegular edge. Designed for retrofit or new construction with simple lift-and-shift access to the plenum.

Panel Grille Specs & Details

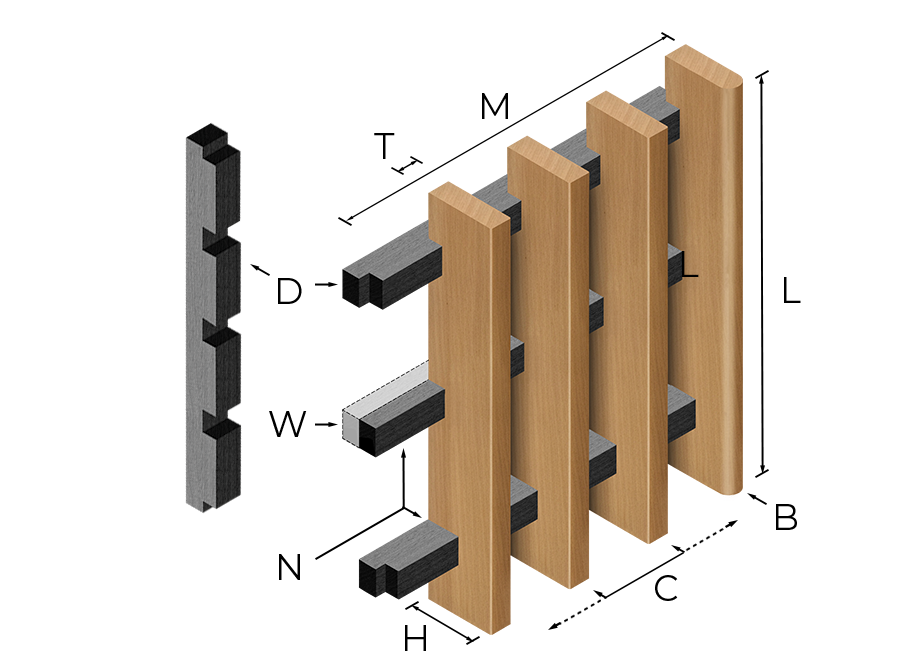

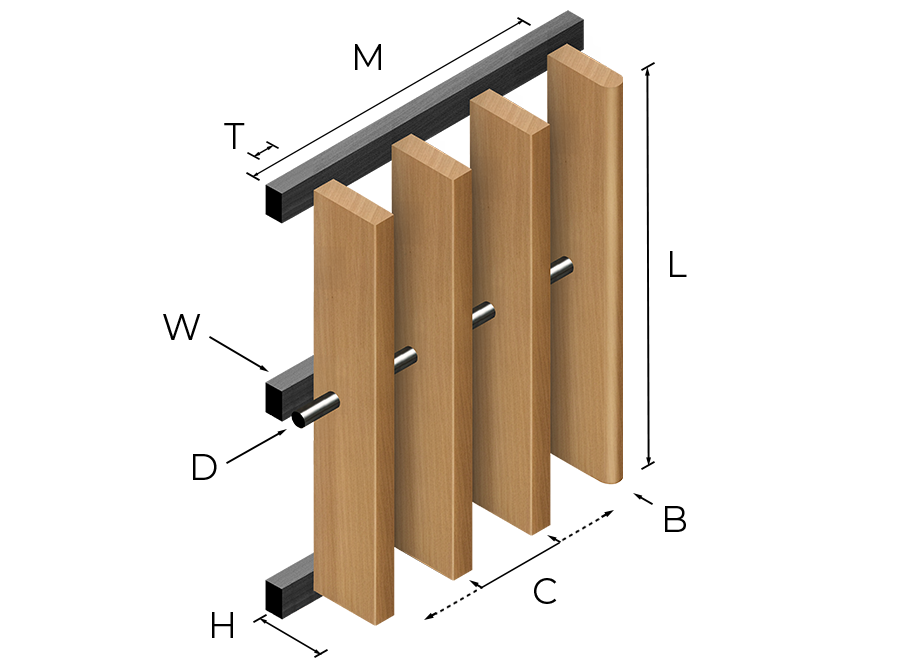

PANEL [PG C-T-H X]
M (MODULE WIDTH)1 12", 24"
C (BLADES/FOOT)3 2 - 10
L (LENGTH)2 2' - 10'
BLADES [PG C-T-H X]
T (THICKNESS)3 3/4" - 2"
H (HEIGHT)3 3/4" - 5-1/4"
TYPES [PG C-T-H X]

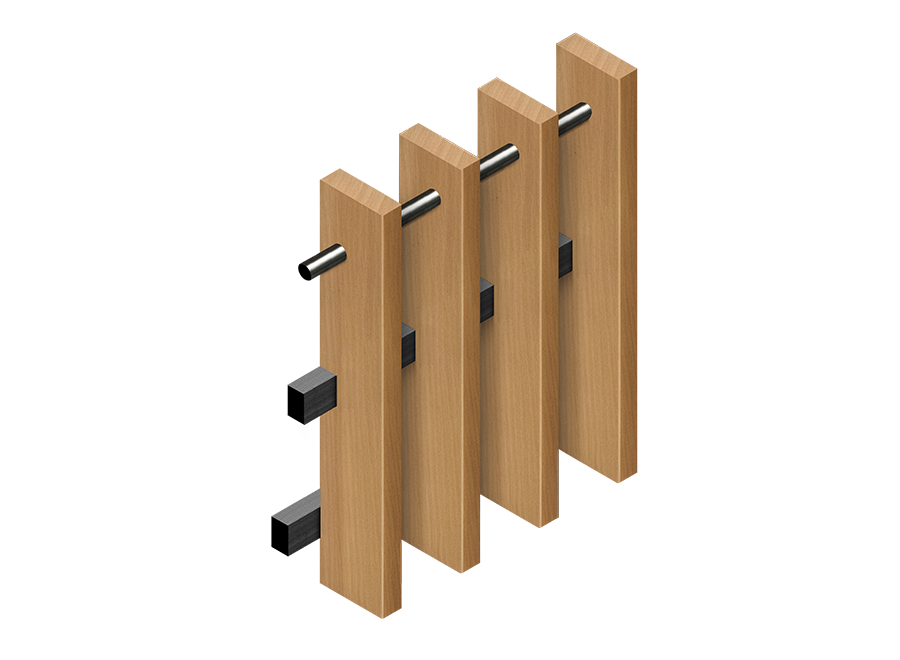

DOWELED D

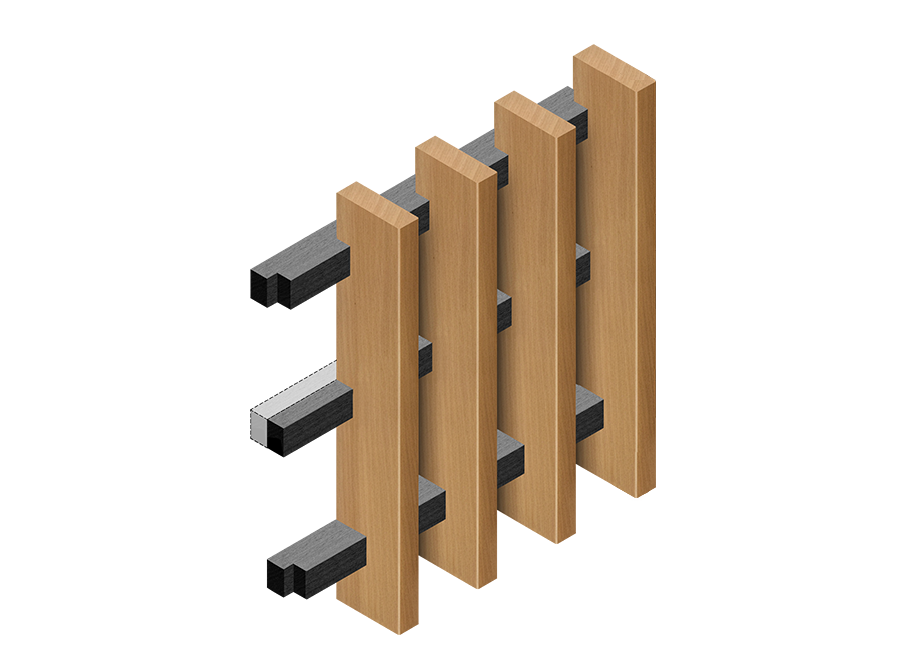

WOODBACKED W
FLEXIBLE X
SLANTED S
BULLNOSED B
FABRIC-BACKED F

1Module - Width varies by profile due to spacing

2Length - 1”/0.5” shy of even foot for solid/veneer panels

3Thickness/Height - Consult standard size table

InTEGrille Specs & Details

PANEL [PGT C-T-H X]
M (MODULE WIDTH) 24"
C (BLADES/FOOT)3 4 - 9
L (LENGTH)2 2',4',6'
BLADES [PGT C-T-H X]
T (THICKNESS)3 3/4",1-5/16"
H (HEIGHT)3 3/4" - 2-1/4"
TYPES [PGT C-T-H X]
DOWELED1 D
WOODBACKED1 W
BULLNOSED B
FABRIC-BACKED F

1Assembly - Dowels are optional; woodbackers are not

2Length - 1” or 5/8” shy of even foot for 15/16” or 9/16” grid

3Thickness/Height - Consult standard size table

FEATURED PROJECT

Dunbar High School

In the heart of Truxton Circle, Washinton D.C. – a hidden treasure – Dunbar High School sits proudly. Continuously raising the bar for education, Dunbar is 99% minority and consistently graduates influential alumni entrusted to make a difference in the modern world. Looking to the future, Dunbar High School updated its campus and added a new 600 seat, 10,000 square foot auditorium – inspired by its 1917 predecessor.  The challenge to bring warmth and intimacy, culminating with the seriousness of its setting; the architecture of the auditorium includes no right angles – reminding students to think outside of the compulsory box.

PRODUCTS USED

Panel Grilles

WOOD CEILINGS & WALLS PRODUCT GUIDE

COMPARE OUR SYSTEMS

EXPLORE WOOD
SPECIES & COLOR

Get the perfect Rulon products for your space.

COMPARISON TABLE

Module Width Module Length Accessibility Attachment Acoustics Fire Performance Seismic Sustainability Material
Panel Grille 1' - 3' 2' - 10' (1' increments) Full Dowel Clip1, Woodbacker Clip2, Direct Attach3, Z-Clip4 Transparent6 Class A Direct Attach3 Various7 Solid, Veneer
InTegrille 2' 2', 4', or 6' Full Dowel Clip1, Woodbacker Clip2, Lay-In or Tegular5 Transparent6 Class A Lay-In or Tegular5 Various7 Solid, Veneer

ATTACHMENT METHODS

[S]=Seismically Compliant

1Dowel Clip – Spring clips that wrap around the dowel and attach to 15/16″ heavy duty grid. The clips are made of spring-steel with phosphate pre-treatment and corrosion-resistant coating.

2Woodbacker Clip – Spring clips that wrap around the woodbacker and attach to 15/16″ grid. The clips are made of spring-steel with phosphate pre-treatment and corrosion-resistant coating.

3Direct Attach [S] – Direct attachment of system to suspension system via mechanical fasteners (typically screws).

4Z-Clip – A two-part aluminum French Cleat system in which the receiving clip is attached to wall structure and the hanging clip is attached to the coresponding location on the system. Lift to disengage.

5Lay-In or Tegular [S] – Integrille can be manufactured with woodbackers that allow the panel to be installed as a Lay-In or Tegular system. Seismic compliance requires a hold-down clip.

NOTES

6Transparent – System has no sound-absorbing material, which allows sound to pass through open area and result in a system that is ‘transparent’ to sound.

7Sustainability – Depending on the format (solid/veneer), the following sustainability standards/requirements can be met by Linear: Solid – HPD v1.2, FSC Mixed Credit; Veneer – HPD v1.2, FSC Mixed Credit, Indoor Advantage Gold, Recycled Content, NAF/ULEF.
