Custom routed patterns allow for maximum sound control and design customization. Non-routed sections provided at borders and coordinated MEP integrations.
Composite panel product with a multi-step manufacturing approach for maximum sound attenuation.
Simple, clean drill patterns deliver excellent sound attenuation at a fraction of the cost. Non-drilled sections provided at borders and coordinated MEP integrations.
| SYSTEM | A100 |
| SD (SLOT DIAMETER) | 3/8” or 1/2” |
| SL (SLOT LENGTH) | 2” - 10” |
| SS (SLOT SPACING) | 1-1/4” or 2-1/2” |
| SO (SLOT OFFSET) | SL + 1-1/2” |
| T (THICKNESS) | 3/4” |
| W/L (MAX WIDTH/LENGTH)1 | 48” / 120” |
1W/L - Max width/length are interchangeable

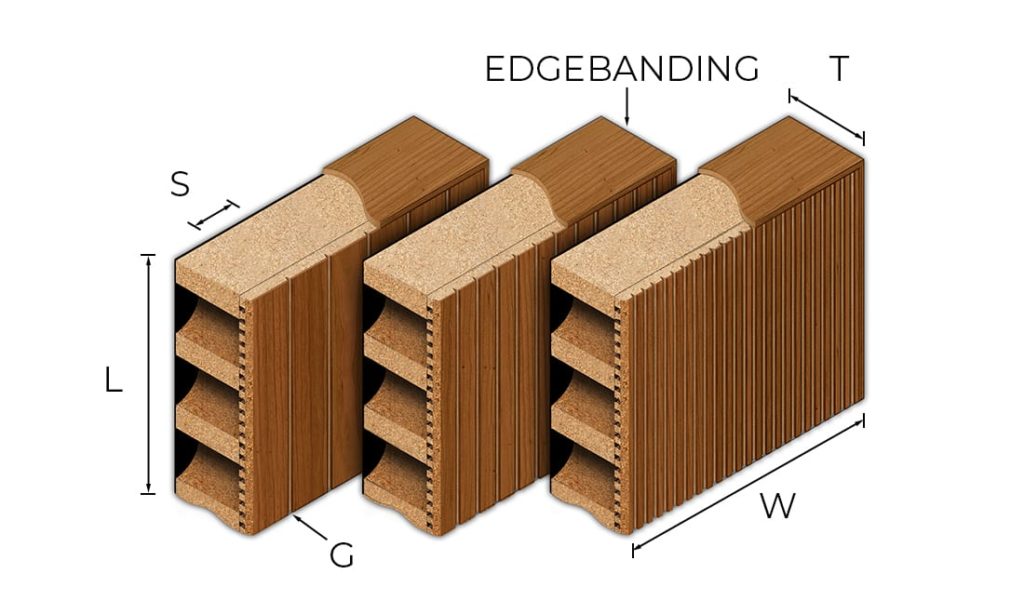

| SYSTEM | A530 | A540 | A550 |
| G (GROOVE)1 | 2mm | ||
| S (SPACING)2 | 10mm | 20mm | 5mm |
| T (THICKNESS) | 1-1/2” | ||
| W/L (MAX WIDTH/LENGTH)3 | 48” / 120” | ||
1Groove - ‘V-Shaped’ Groove
2Spacing - Spacing is O.C. (On Center)
3W/L - Max width/length are interchangeable
| SYSTEM | A700 |
| D (DIAMETER)1 | 6mm, 8mm, or 10mm |
| S (SPACING)1 | 16mm or 32mm O.C. |
| T (THICKNESS) | 3/4” |
| W/L (MAX WIDTH/LENGTH)2 | 48” / 120” |
1Custom - Custom diameter and spacing available
2W/L - Max width/length are interchangeable
Micro-perforated veneer with an acoustically engineered substrate designed for performance without the loss of aesthetics.
Micro-grooved acoustic panels that deliver smaller, less visible U-shaped grooves with no loss of acoustical performance.
Budget-friendly acoustic panel with a U-shaped groove pattern and maximum sound attenuation.
| SYSTEM | A750 | A760 |
| PD (PERF DIAMETER) | 0.5mm | 1mm |
| PS (PERF SPACING) | 1.25mm | 2.5mm |
| PO (PERF OFFSET) | 2.5mm | |
| T (THICKNESS) | 3/4” | |
| W/L (MAX WIDTH/LENGTH)1 | 48” / 120” | |
1W/L - Max width/length are interchangeable

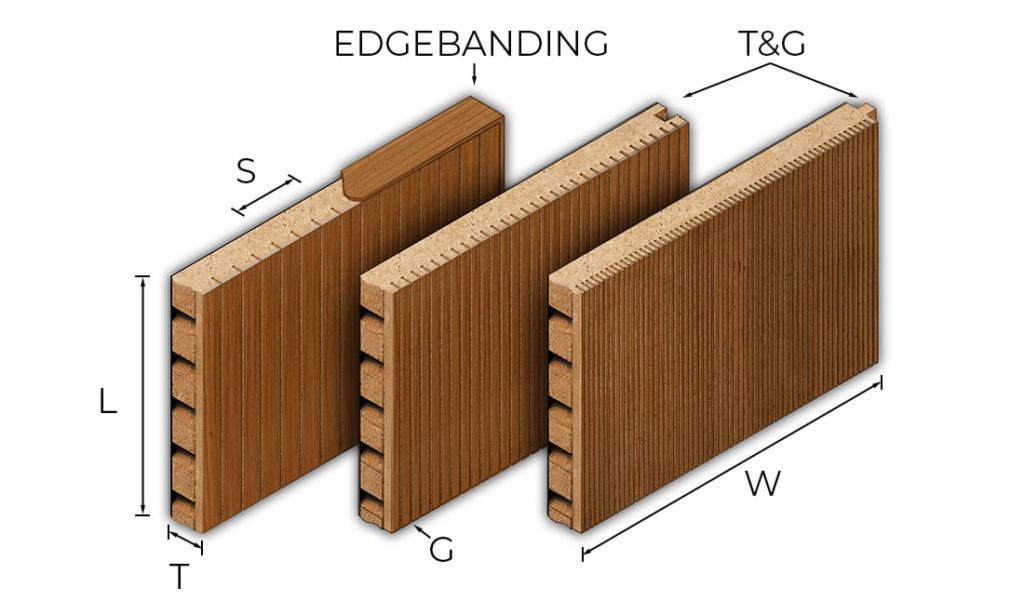

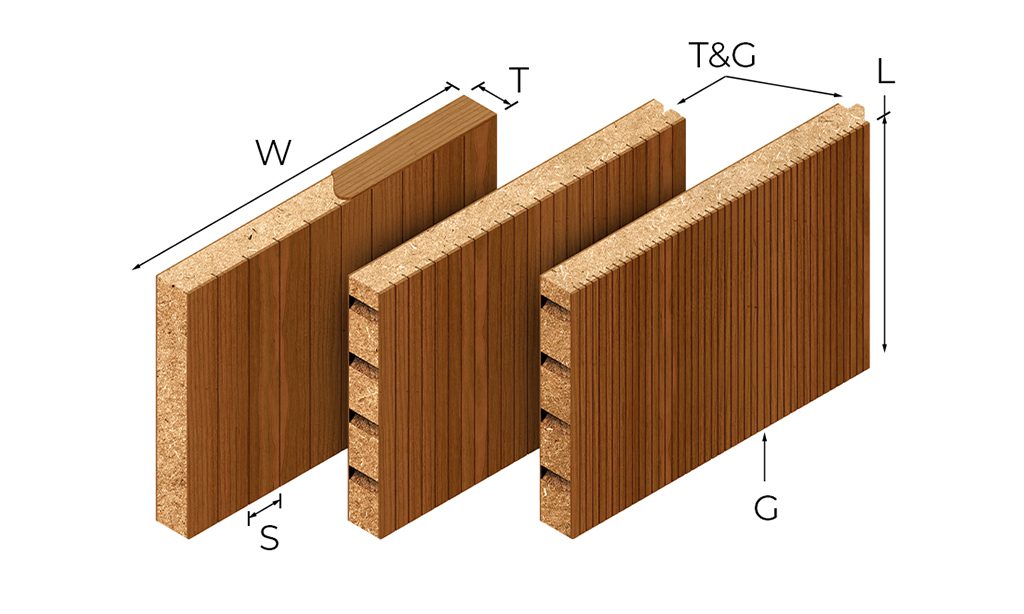

| SYSTEM | A830 | A840 | A850 |
| G (GROOVE)1 | Micro | ||
| S (SPACING)2 | 10mm | 20mm | 5mm |
| T (THICKNESS) | 3/4” | ||
| W/L (MAX WIDTH/LENGTH)3 | 48” / 120” | ||
1Groove - Micro ‘U-Shaped’ Groove
2Spacing - Spacing is O.C. (On Center)
3W/L - Max width/length are interchangeable; tongue & groove panels are supplied in 11-3/4” widths

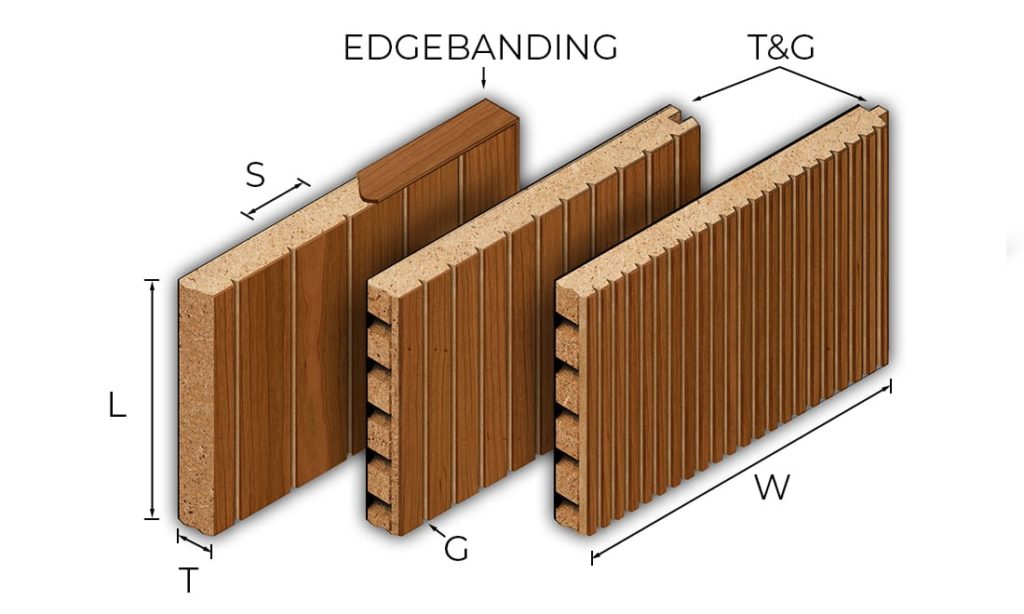

| SYSTEM | A900 |
| G (GROOVE)1 | 2mm |
| S (SPACING)2 | 10mm |
| T (THICKNESS) | 3/4” |
| W/L (MAX WIDTH/LENGTH)3 | 48” / 120” |
1Groove - ‘U-Shaped’ Groove
2Spacing - Spacing is O.C. (On Center)
3W/L - Max width/length are interchangeable; tongue & groove panels are supplied in 11-3/4” widths for A930/A950 and 11” widths for A940
Modern V-shaped grooved panels that limit the visibility of internal panel construction while providing excellent sound attenuation.
| SYSTEM | A930 | A940 | A950 |
| G (GROOVE)1 | 2mm | ||
| S (SPACING)2 | 10mm | 20mm | 5mm |
| T (THICKNESS) | 3/4” | ||
| W/L (MAX WIDTH/LENGTH)3 | 48” / 120” | ||
1Groove - ‘V-Shaped’ Groove
2Spacing - Spacing is O.C. (On Center)
3W/L - Max width/length are interchangeable; tongue & groove panels are supplied in 11-3/4” widths for A930/A950 and 11” widths for A940
This LEED Certified Platinum university building features a seven story open interior. Throughout the entire seven floors, classrooms, offices and an auditorium uniquely stand out by the clever use of acoustical wood veneered panels on the classroom exteriors. The main building structure is comprised of concrete. The concrete permeates the interior walls and supporting columns throughout the building. Contrasting the concrete are classrooms that are distinctly separated by their unique shape, rounded corners and the acoustical panels enshrouding them.
| Style | Dimensions | Accessibility | Attachment | Acoustics | Fire Performance | Seismic | Sustainability | Material | |
|---|---|---|---|---|---|---|---|---|---|
| Aluratone 100 | Slotted | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | Variable4 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 5X0 | Composite | 1-1/2" x MAX 4' x 10'1 | Full | Ceiling2 (no Machined Edge Conditions), Walls3 | NRC-0.70 - NRC-0.855 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 700 | Perforated | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | Variable4 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 7X0 | Microperforated | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | NRC-0.75 - NRC-0.805 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 8X0 | Microgrooved | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | NRC-0.65 - NRC-0.855 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 900 | U-Grooved | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | NRC-0.755 | Class A | Compliant6 | Various7 | Veneer |
| Aluratone 9X0 | V-Grooved | 3/4" x MAX 4' x 10'1 | Full | Ceiling2, Walls3 | NRC-0.60 - NRC-0.705 | Class A | Compliant6 | Various7 | Veneer |
2Ceilings – Standard ceiling attachment methods include [S]=Seismically Compliant:
3Walls – Standard wall attachment methods include:
1MAX – Panel sizes can be customized up to the maximum panel dimensions listed.
4Variable – Slot/Perforation patterns vary widely resulting in a wide NRC range. Precise NRC values can be provided once a layout has been selected.
5NRC Range – NRC ranges listed indicate the system’s base NRC and can be supplemented by additional insulation placed behind the panel.
6Seismic Compliant – Seismic compliance can only be achieved through Direct Attach or Torsion Spring & Saddle Clip attachment methods.
7Sustainability – The following sustainability standards/requirements can be met by Aluratone panels: HPD v1.2, FSC Mixed Credit, Indoor Advantage Gold, Recycled Content, NAF/ULEF.
